Galvalume Steel Coil
>
|
|
| Place of Origin | China |
| Brand Name | DECHO |
| Certification | ISO 9001:2015 Certificate |
| Model Number | AZ 50~165 |

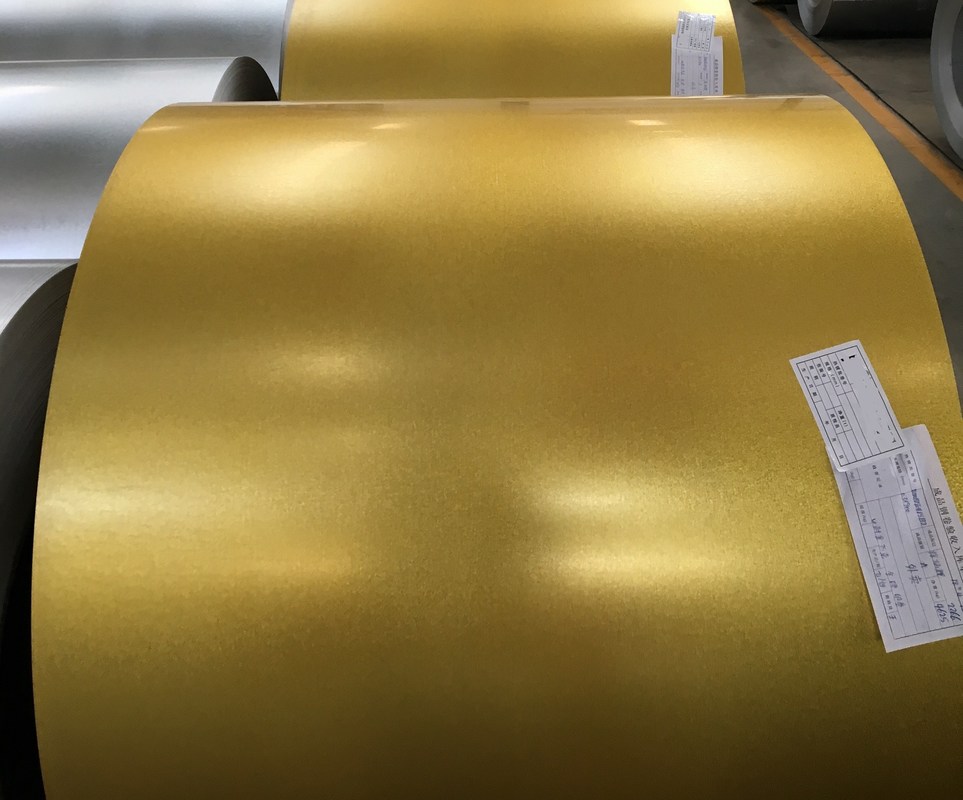

AZ70 Golden Anti-Finger Print Hot Dip Galvalume Metal Coil GL 55% ALU-ZINC Coils G550/SCG570 Full Hard Grade
Galvalume Steel Coil(55% Aluminium-Zinc Alloy Coated Steel Coil)
The aluminum-zinc steel coating consists of about 55% aluminum, about 43.5% zinc and about 1.5% silicon. Compared with traditional galvanized products, it has superior corrosion resistance, heat resistance, heat reflectivity, etc. Zinc spangle on the surface of Galvalume The spangle on the surface of Alu-zinc is small and uniform, with bright colors and high surface hardness. It can be plated with various colors of anti-fingerprint semi-transparent film, which is widely used in household appliances, construction, structure, electrical and other fields.
Product Advantages
1) Corrosion resistance: As the Alu-zinc wears away, the aluminum forms a dense alumina layer that prevents corrosion of internal corrosive materials.
2) Heat resistance: Aluminum-zinc alloy steels have excellent heat resistance and can withstand temperatures of 300°C or higher.
3) Heat reflectivity: The heat reflectivity of Al-Zn steel sheet is very high, twice that of galvanized steel sheet.
4) Economic benefit: Since the density of 55% AL-Zn is lower than that of Zn, for the same weight and the same thickness of gold clad layer, Aluminum-Zinc clad steel sheet is more than 3% larger than the surface area of clad steel sheet.
European Standards EN 10346:2015
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating Mass (g/square meter) |
|---|---|---|---|---|
| EN 10346 | DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S320GD, S350GD S550GD |
0.2 - 1.2 | 800 - 1,250 | AZ100 AZ150 AZ185 |
America standards ASTM A792M
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| ASTM A792M | CS(TYPE A, B, C) FS(TYPE A, B) DS DDS SS GRADE 33(230) 37(255) 40(275) 50(340) CLASS 1~3 80(550) CLASS 1~3 |
0.2 - 1.2 | 800 - 1,250 | AZM100 AZM110 AZM120 AZM150 AZM165 AZM180 |
Japanese Standard JIS G 3321
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| JIS G 3321 | SGLCC SGLCD SGLCDD SGLC400 SGLC440 SGLC490 SGLC570 |
0.2 - 1.2 | 800 - 1,250 | Z06(60) Z08(80) Z10(100) Z12(120) Z14(140) Z18(180) Z20(200) Z22(220) Z25(250) Z27(270) |
Australian Standard AS1397
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating |
|---|---|---|---|---|
| AS1397 | G1~G3 G250 G300 G350 G450 G500 G550 |
0.2 - 1.2 | 800 - 1,250 | AZ150 AZ200 |
| Index |
Regular spangle / Minimum Spangle Galvalume/ 55% Aluzinc Steel Coil/Sheets |
| Thickness | 0.13-2.0mm |
| Width | 600~1500mm |
| Zinc Coating | AZ30~AZ200 g/㎡ |
| Surface Treatment |
AFP (anti-finger print) Passivated / Chromated 6+,3+, Free; Oiled; Skin-passed |
| Steel Grade |
DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A792M, CS-B, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) |
| Coil I.D. | 508 / 610 mm |
| Coil weight | 2 ~ 20 tons |
| Packaging |
Standard export packing ( Eye to Side) Vertical Packing ( Eye to Sky) with wooden pallet Horizontal Packing ( Eye to Side) with wooden pallet |
| MOQ. | 16 tons |
| Loading port | Tianjin / Qingdao / Rizhao port |
