Customized Color Coated Steel Coil / Plate for Home Appliance / Transportion / Packaging / Interior Decoration

Customized Color Coated Steel Coil / Plate for Home Appliance / Transportion / Packaging / Interior Decoration

Customized Color Coated Steel Coil / Plate for Home Appliance / Transportion / Packaging / Interior Decoration

Place of Origin	China
Brand Name	Decho Building Materials
Certification	MILL TEST CERTIFICATE、ISO9001-2008、SGS、BV
Model Number	S320GD PRE-PAINTED GAVALUME STEEL

Product Details

Color:

RED

Thickness:

0.5mm~1.2mm

Z-coating:

AZ50~180g/㎡

Steel Grade:

S320GD

STEEL GRADE:

DX51D

PAINT SYSTEM:

HDP

Highlight:

1.2mm Color Coated Steel Coil

,

Customized Color Coated Steel Coil

,

Transportion Color Coated Steel Coil

Payment & Shipping Terms

Minimum Order Quantity

25 TONS

Price

USD 700~1050

Packaging Details

Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet

Delivery Time

30~45days

Payment Terms

L/C, T/T

Supply Ability

500 tons per day

Product Description

High Quality Customized Color Coated Steel Coil /Plate

for Home Appliance/Transportion/Packaging/Interior Decoration

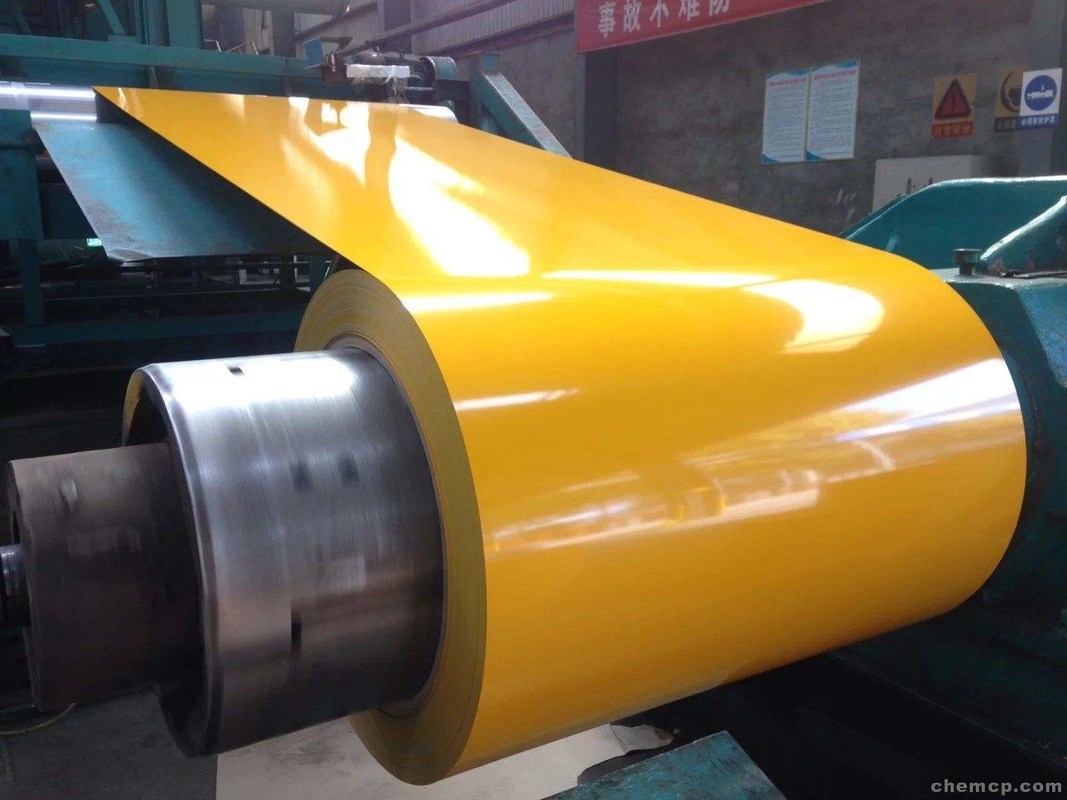

Color coated steel coil is a product made of cold-rolled steel coil and (aluminum) galvanized steel coil after surface chemical treatment, coating (roll coating) or composite organic film (PVC film, etc.), and then baking and curing. It not only has the properties of high mechanical strength and easy forming of steel materials, but also has good decoration and corrosion resistance of coating materials.
Color coated steel coil is mainly divided into three classifications: Construction, Household appliances and Transportation.
Building is generally used to build the roof, wall and door of industrial and commercial buildings such as steel structure workshop, airport, warehouse and freezer.
Household appliances are used in the production of refrigerators and large air conditioning systems, freezers, toasters, furniture, etc.
Transportation industry is mainly used for oil pan, automobile interior parts, etc.

Color-coated coils are products made from hot-dip galvanized steel sheet, hot-dip aluminized steel sheet or electrolytically galvanized steel sheet as the base material, which, after surface pretreatment (degreasing and conversion treatment), is coated with one or more layers of colored coating and baked and cured. It is also available in various steel sheet coils painted in different colors, called color-coated coils.

Product features

(1) Longer service life than galvanized sheet metal;

(2) Good heat resistance than galvanized steel at high temperatures; not easy to change color;

(3) Good heat reflection;

(4) Processing and coating properties similar to hot-dip galvanized steel; (5) Good welding properties.

(5) Good welding performance.

(6) Excellent economy, performance and competitive price. As a result, architects, engineers and manufacturers widely use zinc-aluminum coated steel sheets in industrial buildings, steel structures and civil engineering equipment, including garage doors, gutters and roofs.

Model No.		Delivery Time	5~7 Working Days
Edge	Slit edge	Loading Port	Shenzhen
Width	600-1500mm	Origin	China
Thickness	0.5MM (or as requested)	Trade Terms	Fob, CIF, CFR, CNF, etc.
Tolerance	±1%	Payment	T/T 30% Deposit+70% Advance
Production Capacity	100000 PCS/Month	Application	Construction Home Appliances Transportation

Structural Grades	C	Mn	P	S	Al	Si	Cu	Ni	Cr	Mo	V	Cb	Ti	N
30,33,36,40	0.25	0.9	0.035	0.04			0.2	0.2	0.15	0.06	0.008	0.008	0.025
36T2,45-80	0.25	1.35	0.035	0.04			0.2	0.2	0.15	0.06	0.008	0.008	0.025
45T2	.02- 0.08	.30- 1.0	.03- .07	0.025	.02- .08	0.6	0.2	0.2	0.15	0.06	0.008	0.008	0.025	.01- .03

HSLA Grades	C	Mn	P	S	Al	Si	Cu	Ni	Cr	Mo	V	Cb	Ti	N
45C1	0.22	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
45C2	0.15	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
50C1	0.23	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
50C2 & 55C2	0.15	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
55C1	0.25	1.35	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
60C1 & 65C1	0.26	1.5	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
60C2 & 65C2	0.15	1.5	0.04	0.04			0.2	0.2	0.15	0.06	0.005	0.005	0.005
70C1	0.26	1.65	0.04	0.04			0.2	0.2	0.15	0.16	0.005	0.005	0.005
70C2	0.15	1.65	0.04	0.04			0.2	0.2	0.15	0.16	0.005	0.005	0.005

Common Grades	C	Mn	P	S	Al	Si	Cu	Ni	Cr	Mo	V	Cb	Ti	N
CSA	0.1	0.6	0.03	0.035			0.2	0.2	0.15	0.06	0.008	0.008	0.025
CSB	0.02-.15	0.6	0.03	0.035			0.2	0.2	0.15	0.06	0.008	0.008	0.025
CSC	0.08	0.6	0.1	0.035			0.2	0.2	0.15	0.06	0.008	0.008	0.025
BH	0.012	1.5	0.12	0.03			0.2	0.2	0.15	0.06	0.008	0.008	0.025
FSA	0.1	0.5	0.02	0.035			0.2	0.2	0.15	0.06	0.008	0.008	0.025
FSB	0.02-.15	0.5	0.02	0.03			0.2	0.2	0.15	0.06	0.008	0.008	0.025
DDS	0.06	0.5	0.02	0.025	.01		0.2	0.2	0.15	0.06	0.008	0.008	0.025
EDDS	0.02	0.4	0.02	0.02	.01*		0.2	0.2	0.15	0.06	0.1	0.1	0.15

Customized Color Coated Steel Coil / Plate for Home Appliance / Transportion / Packaging / Interior Decoration 0

Customized Color Coated Steel Coil / Plate for Home Appliance / Transportion / Packaging / Interior Decoration 1

Customized Color Coated Steel Coil / Plate for Home Appliance / Transportion / Packaging / Interior Decoration 2

Customized Color Coated Steel Coil / Plate for Home Appliance / Transportion / Packaging / Interior Decoration 3

Customized Color Coated Steel Coil / Plate for Home Appliance / Transportion / Packaging / Interior Decoration 4
