Color Coated Steel Coil
>
|
|
| Place of Origin | China |
| Brand Name | Decho Building Materials |
| Certification | MILL TEST CERTIFICATE |
| Model Number | S320GD PPGI |

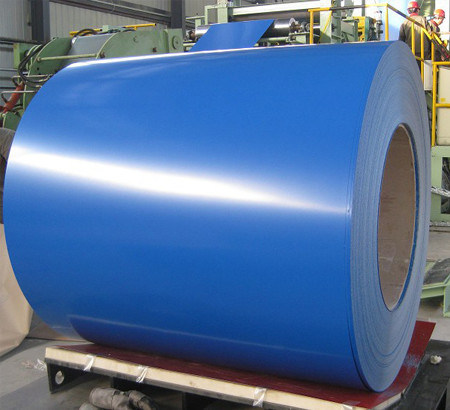

Z180 Beckers 10 Years warranty Color Coated Steel coil ASTM Standard Sea Freight Packing 0.12mm-0.8mm Mainland China
PPGI is generally used for the civil and industrial engineering industry (such as roofing plate, partitions, ceiling partition, rolling door, etc.) or industrial power (such as house, cover of electrical equipment, etc.) and interior decoration.
Pre-Painted Galvanized is produced from the color coating line Input sheets are put into flushing, pickling phases and coated with an additives to enhance the adhesives, then, it is covered with the primer before it is officially painted and dried.
Prepained galvanized steel /coil for roof/sandwich panel
Applications of PPGI steel coil
1. Construction and building: roofing; ventilating duct; handrail; partition panel;etc.
2. Electric appliance: refrigerator; washing machine; refrigerator; DVD;etc.
3. Transportation: oil tank; road sign; etc.
4. Agriculture:barn; etc.
5. Others:vending machine; game machine; etc.
| Thickness: | 0.25--1.2 mm | |||
| Width: | 600--1250 mm | |||
| Coil weight: | 3--12 MT or as requirements | |||
| Coating: | AZ30-AZ150g/m2 | |||
| Surface types: | 2/1 Coat the top surface of the steel sheet twice, coat the bottom surface once, and bake the sheet twice.Front side paint | |||
| thickness: 15-25μm (bottome paint + top paint) Front side paint thickness: 15-25μm (bottome paint + top paint) Back side paint | ||||
| thickness: 5-10μm | ||||
| Surface Treatment: | Normal Coated, RAL system, as customers' requirement | |||
| Standard: | ASTM,BS,EN,JIS | |||
| Grade: | CQ, G550, Grade33, Grade37, Grade40 | |||
| Paint type: | PE | Good adhesion, durability, chemical resistance. Service life is 7-10 years | ||
| SMP | Excellent hardness, heat resistance. It has the good durability and powder resistance, giossy resistance. Service life is 10-12 years | |||
| HDP | Better UV resistance, high durability , the mainly performance between PE and PVDF coating. Service life is 10-1S years | |||
| PVDF | Best formatlity and color retention, excellent outdoor durbty, dust resistance, solvent resistance Service life is 20-25 years | |||
| Payment: | T/T ,L/C at sight | |||
| Color: | As RAL NO. | |||
