PVDF Wood Grain 3003H24 Aluminium Coil Printech Color Coil 50-Year Warranty Printech Color Coated Coil

Product Introduction Section

Printed color coated steel and aluminum coil

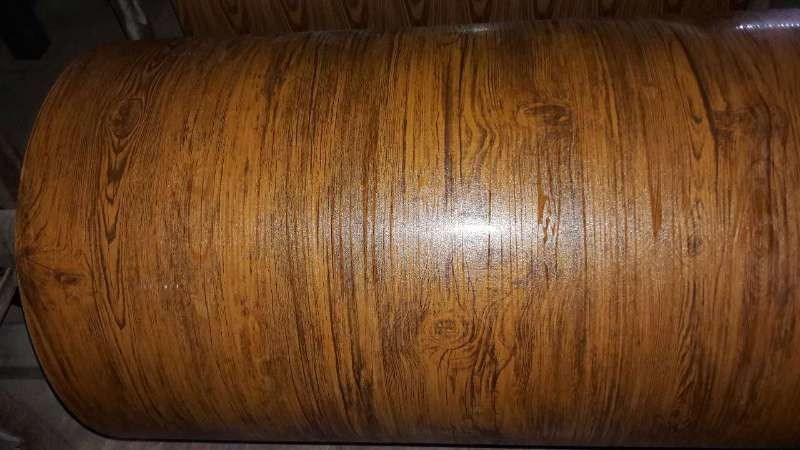

The printed color coated plate has decorative effects such as wood grain, brick grain, camouflage, marble, etc.

The printing color coated coils usually adopts the gravure printing process, which uses steel rollers for laser engraving of the required patterns to transfer the ink onto the surface of the steel plate.

• Firstly, the substrate is subjected to pre-treatment such as degreasing, cleaning, and passivation. After the pre-treatment process is completed, a layer of matching color primer is applied to the surface of the steel plate. According to the application field of the printed color coated plate, the primer can be divided into polyester, polyurethane, and other coating types. After the primer is dried and bakeout, printing is carried out using ink. According to the complexity of the pattern, it can be divided into single color printing and multi color printing. After the ink printing is dried and baked, Re-coating the varnish, including polyester, High durable polyester (HDP), fluorocarbon PVDF and other paint coating types. After the primer is dried and solidified, the entire production process of printed color coated boards is completed through processes such as cooling, coiling, and shearing.

• The above is a two-coating and two-baking production process, for the higher requirements of printing colour coated panels, such as fluorocarbon printing colour coated panels, you can use the three-coating and three-baking process, after the roller coating of polyurethane primer, then coated with a layer of fluorocarbon topcoat of the matching colours, and then ink printing, and then finally coated with a layer of fluorocarbon varnish.

Color coated aluminum sheet in coils has the characteristics of long service life, light weight, excellent surface effect and high recycling value, and has good economic benefits to meet the urgent demand of the current social economy and environmental protection development.

Our factory's aluminum color coating production line uses Germany's Siemens complete line control system, and the core painting process uses the world's most advanced German roll coating technology and twice-coated, twice-hot air-curing coating technology to accurately control coating thickness and curing quality.

The color aluminum adopts neutral treatment agent, roller coating treatment and hot air rapid drying process in the chemical treatment process, which is different from the ordinary dip coating chemical treatment method, which effectively eliminates environmental damage.

Moreover, the surface treatment is carried out with advanced chromium-free treatment liquid to meet strict environmental protection requirements at home and abroad.

During the curing process of the color coated aluminum plate surface coating'. the volatile components can be recycled and utilized for the second time, and equipped with an advanced VOC defluorination system to improve the utilization rate of heat energy while achieving zero emissions, and absolutely elimina te environmental pollution

Wooden Printed Galvalume Steel Coils Coating Types
According to different environment and uses, we can choose the different appropriate resin coating.
1) Polyester(PE)
Good formability and adhesion, color is rich and various, superior durability in the outdoor, good chemical resistance
and low cost.
2) Silicon modified polyester(SMP)
Good wear resistance and heat resistance, as well as good exterior durability and resistance to pulverization, medium cost.
3) High durability polyester(HDP)
Anti-ultraviolet and excellent color retention, excellent resistance to pulverization, good adhesion, color is rich, good cost
performance.
4) Polyvinylidene fluoride(PVDF)
Strong performance of anti-ultraviolet, can stand against strong change of weather for long time and erosion for many kinds
of chemical medium, excellent solvent resistance,dirty resistance, color is limited and high cost.

Customized Patterns

Detailed Parameters:

Paint Suppliers & Partners:

We only choose the top-level paint suppliers for our pre-painted steel coils and sheets,

AkzoNobel, Sherwin-Williams Valspar, Beckers, PPG Industries, Nippon, KCC are our solid paint suppliers.

Their best paint materials decide our steel coils quality.

Package & Delivery Shipment :

Delivery time: 30 days deliver to loading port

Shipment Methods: Container, Breakbulk, Railway, Trucks

Projects

Why Choose Us:

DECHO building colour steel plate can meet the need to use colour steel plate as raw material for building. Decho Building Materials colour steel plate is mainly processed into, for example, colour steel corrugated board or colour steel composite sandwich board after our colour steel plate is widely used in the construction of airports, freezers, steel plants, warehouses, and other industrial buildings and commercial buildings, such as the roof of the colour steel tiles, colour steel plate sandwich walls and doors.

Reasons for choosing Decho Building Materials new material:

1. Provide extremely rich colour choices
2. The paint surface is long-lasting and bright
3. Surface coating will not fall off after stamping and has good hardness with strong ductility and is not easy to scratch.
4. with excellent weather resistance, corrosion resistance, is to ensure the durability of the premise of the building
5. DECHO BUILDING MATERIALS for the manufacturer direct sales
6. The colour is customized by customers;
7. Thickness and width have a variety of options;
8. We provide whole rolls and cut boards for sale;

Welcome to enquire.
