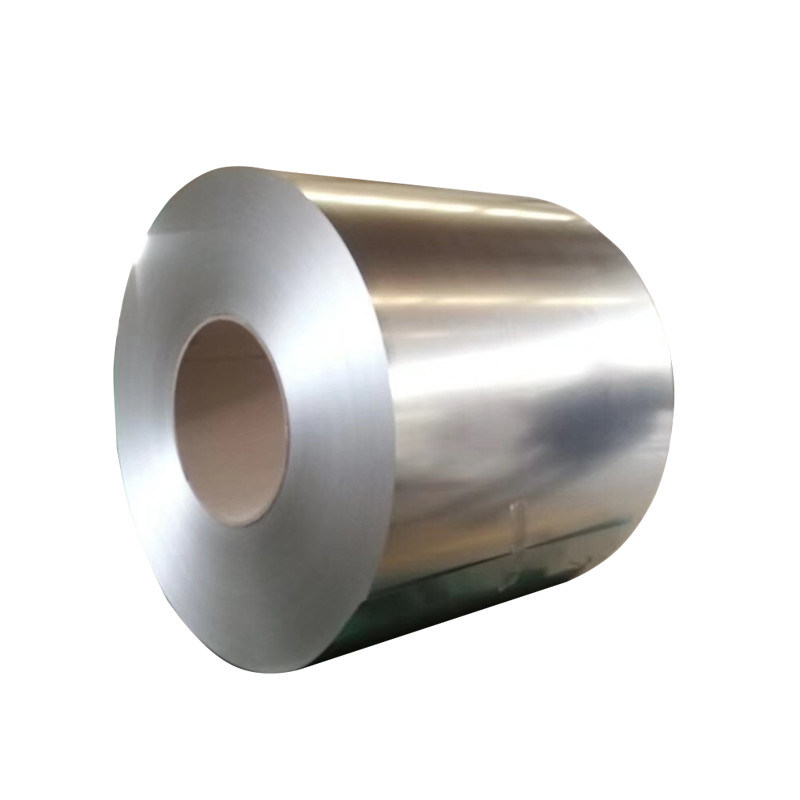

Galvanized Steel Coil
>
|
| Place of Origin | China |
| Brand Name | Decho Building Materials |
| Certification | A Aertificate |
| Model Number | A |
SS255 - SS550 BOBINAS DE ACERO GALVANIZADAS DE CERO GRIETAS CROMATO SIN AFP
Applications of Our Galvanized Steel Coils :
1.Construction and building: roofing; ventilating duct; handrail; partition panel,etc.
2.Further processing: coating base plate.
3.Electric appliance: refrigerator; washing machine; recorder; microwave, etc.
1) Standard: JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer's request
2) Grade: SGCC, SGCH,DX51D, Q195,Q235 all according to the customer's request
3) Capacity: about 12000 tons per month
9) Spangle: regular spangle,big spangle, small spangle and zero spangle
10) Surface treatment: Chemical passivating, oils, passivating oils,skin passed
11) Edge: mill edge, cut edge
12) Min trial order 25 ton each thickness
Home Appliance Application:
| Index |
Regular spangle Galvanized Steel Coil/Sheets |
Zero spangle Galvanized Steel Coil/Sheets |
| Thickness | 0.13-2.50mm | 0.20-2.0mm |
| Width | 600~1500mm | 600~1500mm |
| Zinc Coating | Z30~Z400 g/㎡ | Z30~Z275 g/㎡ |
| Surface Treatment |
Passivated / Chromated 6+,3+, Free; Oiled |
Skin passed, Chromated 6+, 3+, Free Oiled, AFP (anti-finger print) |
| Steel Grade |
DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A653M, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) |
DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A653M, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) |
| Coil I.D. | 508 / 610 mm | 508 / 610 mm |
| Coil weight | 2 ~ 20 tons | 2 ~ 20 tons |
| Packaging |
Standard export packing ( Eye to Side) Vertical Packing ( Eye to Sky) with wooden pallet Horizontal Packing ( Eye to Side) with wooden pallet |
|
| MOQ. | 16 tons | 16 tons |
| Loading port | Tianjin / Qingdao / Rizhao port | |
| Usage | Purlins, light steel frame, ventilation duct, downpipe, round pipe, square pipe, roof panel, corrugated sheets. |
Coated steel coil production, household appliances ( pre-coated metal PCM) Roof panel, corrugated sheets |
| STEEL GRADE | CHEMICAL COMPOSITION % | MECHANIC PROPERTY |
C.B OF COATING |
COATING | ||||||
| C | Si | Mn | S | P | T.S | Y.S | E.L | |||
| x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | d=0 180° | G/M² | |
| JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | OK | Z60-150 |
| JIS G3302 SGCH | 12 | 10 | 21 | 18 | 8 | 680 | 650 | OK | Z60-150 | |
| ASTM A653 CS.B | 20 | 30 | 60 | 35 | 30 | 386 | 205~380 | 20 | OK | Z80-275 |
| DX51D+Z | 29 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | OK | Z80-275 |
| G550 | 20 | 6 | 73 | 5 | 17 | 715 | 654 | 8 | OK | Z80-275 |
| Name | prime hot dipped galvanized steel coil |
| Standard | ASTM, AISI, DIN, GB |
| Grade |
SGCC,DC51D,DX51D,DX52D,,SGCD,Q195,Q235,SGHC,DX54D, S350 GD, S450 GD,S550 GD... |
| Thickness | 0.135mm-4.0mm |
| Width | 600mm-1500mm762mm,914mm,1000mm,1200mm,1219mm,1250mm |
| Zinc Coating |
30~275gsm 40g,60g, 80g, 90,100g, 120g, 140g,180g, 200g, 250g, 275g and so on. |
| Spangle | zero spangle, regular spangle or normal spangle |
|
Surface Treatment |
|
| Coil Weight | 3-8ton or as client requirement. |
| Quality |
soft or hard quality |
