Galvalume Steel Coil
>
|
|
| Place of Origin | China |
| Brand Name | DECHO |
| Certification | ISO 9001:2015 Certificate |
| Model Number | ASTM A792M CS-B |
Aluminium Zinc Roofing Materials Az150 ASTM A792m Building Material Anti-Finger Galvalume Dx51d+Az Zincalume

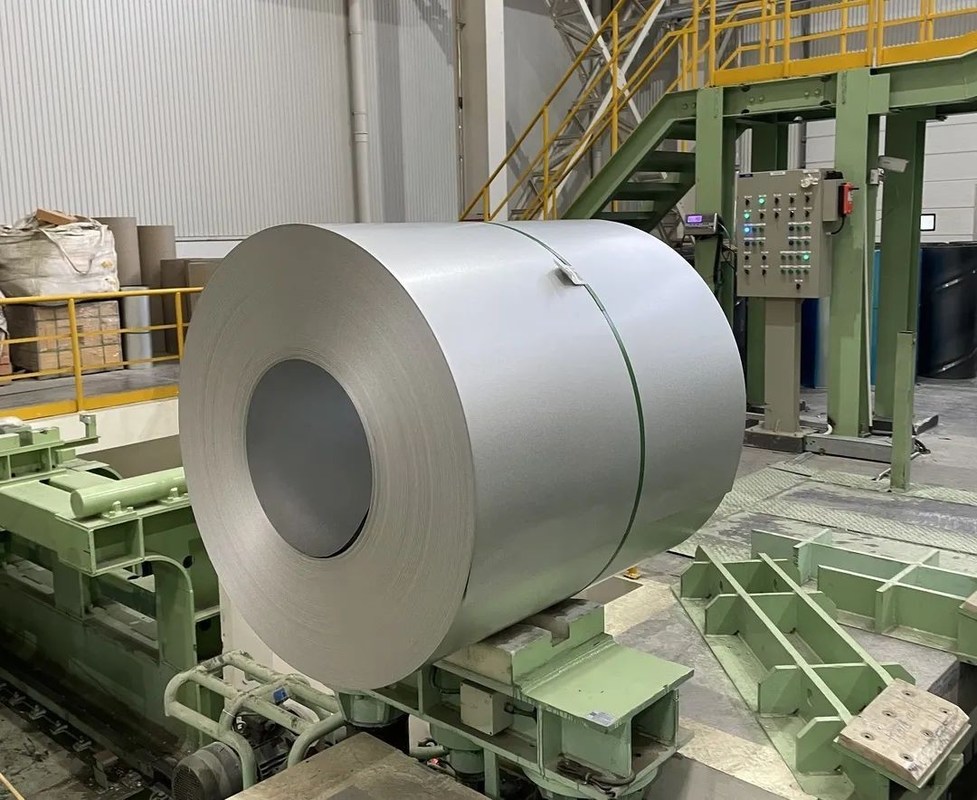

Galvalume Steel Coil(55% Aluminium-Zinc Alloy Coated Steel Coil)
Aluminium-zinc steel is composed of an aluminium-zinc alloy structure, consisting of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at a high temperature of 600 degrees Celsius. Its entire structure consists of aluminium - iron - silicon - zinc, the formation of dense tetrameric crystals of an alloy coated steel.
Main advantages
1, smooth surface, excellent resistance to atmospheric corrosion, its corrosion resistance life is 2-6 times higher than hot-dip galvanised steel;
2, with good heat and oxidation resistance, it does not change colour for a long time under 300℃, and it can be used for a long time around 500℃. In addition, the heat reflectivity of the product is higher than 75%, which is 2 times higher than that of galvanised sheet;
3, has excellent paintability and good processing performance. The combination of machine material is strong, which is the best choice for colour coated steel sheet substrate. Its processability and weldability are similar to that of hot galvanised sheet, and it can be processed by cold bending and stamping, and has a good appearance.
Attentions in Transportation and Storage:
1. Galvanized Steel Coils should be stored in neat and tidy environment to avoid possible corrosioncaused by all kinds of corrasive medium.
2. The ground for storage should be flat, without hard object, and with sufficient loading-bearing capacity.
3. Storage environment should be dry and ventilated. Avoiding storing outdoors or with dew or with wide temp difference.
4. Coil could not be dragged lest the burr caused by slicing will scratch the coil surface underneath. Coil should be handled with care, without hitting any hard object.
European Standards EN 10346:2015
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating Mass (g/square meter) |
|---|---|---|---|---|
| EN 10346 | DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S320GD, S350GD S550GD |
0.2 - 1.2 | 800 - 1,250 | AZ100 AZ150 AZ185 |
America standards ASTM A792M
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| ASTM A792M | CS(TYPE A, B, C) FS(TYPE A, B) DS DDS SS GRADE 33(230) 37(255) 40(275) 50(340) CLASS 1~3 80(550) CLASS 1~3 |
0.2 - 1.2 | 800 - 1,250 | AZM100 AZM110 AZM120 AZM150 AZM165 AZM180 |
Japanese Standard JIS G 3321
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| JIS G 3321 | SGLCC SGLCD SGLCDD SGLC400 SGLC440 SGLC490 SGLC570 |
0.2 - 1.2 | 800 - 1,250 | Z06(60) Z08(80) Z10(100) Z12(120) Z14(140) Z18(180) Z20(200) Z22(220) Z25(250) Z27(270) |
Australian Standard AS1397
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating |
|---|---|---|---|---|
| AS1397 | G1~G3 G250 G300 G350 G450 G500 G550 |
0.2 - 1.2 | 800 - 1,250 | AZ150 AZ200 |
| Index |
Regular spangle / Minimum Spangle Galvalume/ 55% Aluzinc Steel Coil/Sheets |
| Thickness | 0.13-2.0mm |
| Width | 600~1500mm |
| Zinc Coating | AZ30~AZ200 g/㎡ |
| Surface Treatment |
AFP (anti-finger print) Passivated / Chromated 6+,3+, Free; Oiled; Skin-passed |
| Steel Grade |
DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A792M, CS-B, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) |
| Coil I.D. | 508 / 610 mm |
| Coil weight | 2 ~ 20 tons |
| Packaging |
Standard export packing ( Eye to Side) Vertical Packing ( Eye to Sky) with wooden pallet Horizontal Packing ( Eye to Side) with wooden pallet |
| MOQ. | 16 tons |
| Loading port | Tianjin / Qingdao / Rizhao port |
