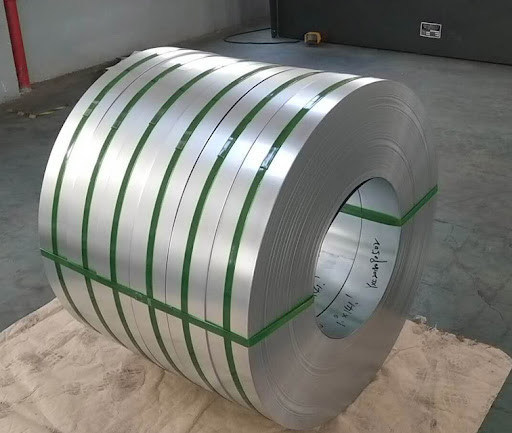

Galvalume 55%Aluzinc Steel Slit Coil AZM150 AFP Anti-Finger Print Light Steel House G550 Structural Steel Slit Coils

G550 Structural Galvalume 55%Aluzinc Steel Slit Coil AZ150 Anti-Finger Print AFP Light Steel House Steel Slit Coils

Introduction:

Aluminium-zinc-steel plated light steel has quite a few excellent characteristics: Strong corrosion resistance, 3 times that of pure galvanising; beautiful zinc flowers on the surface, can be used as building roof exterior panels. Abbreviation AZ150, aluminium-zinc-steel plates keel for a long time without colour change on the bare surface, such as chemical corrosion, the surface of the physical reaction occurs, the formation of aluminium protective film on the surface of the keel, so that the outside world of chemical substances and the keel separated from the separation of the keel, to protect the keel of the main body of the material, to prevent rusting.

• Corrosion resistance is mainly because of aluminium, the protective function of aluminium. When the zinc is abraded, aluminium forms a dense layer of aluminium oxide, preventing the corrosion-resistant substances from further corroding the interior.
• Aluminium-zinc-plated alloy steel coils have been subjected to more than 20 years of outdoor exposure tests in a variety of atmospheric environments, confirming that aluminium-zinc-plated steel sheets provide much better protection for cut edges than galvanised steel sheets.
• Thermal reflectivity: Aluminium-zinc plated mild steel has a high thermal reflectivity, twice that of galvanised mild steel, and is often used as a thermal insulator.

G550 550Mpa 2.06X105 N/mm 2 7.85g/cm 3 1.2×10-5℃

The commonly used mechanical properties and physical parameters of G550 aluminium zinc plating are as follows:

Name Yield strength Modulus of elasticity Volume weight Coefficient of thermal expansion

G550 550Mpa 2.06X105 N/mm 2 7.85g/cm 3 1.2×10-5°C

Characteristics:

• Corrosion resistance: zinc is chemically active, in the air at room temperature, the surface generates a thin and dense layer of alkaline zinc carbonate film, which can prevent further oxidation, and aluminium in the air, can form a layer of insoluble oxides, in which the barrier protection function.
• Heat Resistant: Aluminium zinc plated sheets can be used in high temperature environments up to 315 degrees.
• Reflectivity: Aluminium-zinc coated sheets are highly reflective, with a heat reflectivity almost twice that of galvanised steel, making them ideal for use on steel metal roofs to achieve energy savings.
• Easy to paint: Aluminium-zinc-plated sheets from aluminium-zinc-plated sheet manufacturers have excellent adhesion between the sheet and the paint and can be painted without pre-treatment or weathering.
• The coating adhesion of the aluminium-zinc plating layer is relatively good, so it can be applied directly to advertising boards and general-purpose boards without pre-treatment such as weathering.

Advantages of Galvalume Steel which Compared with Galvanized

Which is more scratch-resistant and durable, light steel keel galvanised or aluminium zinc plated?

The difference between galvanised and aluminium zinc plating

Lightweight steel coatings are divided into two types: galvanised and aluminium zinc plated:

Galvanised: the amount of galvanised light steel plating and can be determined according to its different use of the environment and function of the amount of galvanisation required; in order to strengthen the corrosion resistance, can be controlled in accordance with the different requirements of the thickness of the galvanised layer can be in the 120g/m2 - 275g/m2.

Galvanised steel sheet Z275 - i.e. galvanised steel sheet, Z275: zinc layer weight designation, indicating the weight of zinc contained in the steel sheet on both sides 275g/m2.

Galvanised Physical Changes: Galvanised is exposed all year round to react with oxygen in the air and the surface will blacken.

Aluminium zinc plating: aluminium zinc plated light steel has a number of excellent characteristics: strong corrosion resistance, 3 times that of pure galvanised; beautiful zinc flowers on the surface, which can be used as a building exterior panels. Abbreviation AZ150, aluminium-zinc-plated keel for a long time without colour change on the bare surface, such as chemical corrosion, the surface of the physical reaction occurs, the formation of aluminium protective film on the surface of the keel, so that the outside world of chemical substances and the keel separated from the separation of the keel, to protect the keel of the main body of the material, to prevent rusting.

Corrosion resistance is mainly because of aluminium, the protective function of aluminium. When zinc is abraded, aluminium forms a dense layer of aluminium oxide, preventing further corrosion of the corrosion-resistant material inside.

Aluminium-zinc plated alloy steel coils have been subjected to outdoor exposure tests for more than 20 years in a variety of different atmospheric environments, confirming that the protective function of aluminium-zinc plated steel sheets with cut edges is much better than that of galvanised steel sheets.

Heat reflectivity

Aluminium-zinc-plated mild steel has a high thermal reflectivity, twice that of galvanised mild steel, and is often used as a thermal insulator.

1) Standard: ASTM A792M, AS1397, EN10346/ EN10143 all according to the customer's request
2) Grade: SGCC, CS-Type B, Grade 350, G550, Grade 50, Grade 80, SS550GD,  all according to the customer's request

3) Capacity: about 20000 tons per month

4) Thickness: from 0.13mm to 2mm, all available
5) Width: from 600mm to 1250mm, regular size:750-762mm,900-914mm,1000mm,1200mm,1219-1250mm all available
6) Coil ID: 508mm
7) Coil weight: from 2-10MT, according to the customer's request

8) Zinc coating weight: AZ30~AZ165g/m2

9) Spangle: regular spangle,big spangle, small spangle
10) Surface treatment: Anti-finger print (Green, Blue, Golden, No color) Chemical passivating, oils, passivating oils,skin passed
11) Edge: mill edge, cut edge
12) Min trial order 25 ton each thickness

Application:

Export Package

Why Us:

DECHO building colour steel plate can meet the need to use colour steel plate as raw material for building. Decho Building Materials colour steel plate is mainly processed into, for example, colour steel corrugated board or colour steel composite sandwich board after our colour steel plate is widely used in the construction of airports, freezers, steel plants, warehouses, and other industrial buildings and commercial buildings, such as the roof of the colour steel tiles, colour steel plate sandwich walls and doors.

Reasons for choosing Decho Building Materials new material:

1. Provide extremely rich colour choices
2. The paint surface is long-lasting and bright
3. Surface coating will not fall off after stamping and has good hardness with strong ductility and is not easy to scratch.
4. with excellent weather resistance, corrosion resistance, is to ensure the durability of the premise of the building
5. DECHO BUILDING MATERIALS for the manufacturer direct sales
6. The colour is customized by customers;
7. Thickness and width have a variety of options;
8. We provide whole rolls and cut boards for sale;

Welcome to enquire.
