Color Coated Aluminum Coil
>
|
| Place of Origin | China |
| Brand Name | Decho |
| Certification | ISO9001 |
| Model Number | Aluminium Coil 3003H26 |

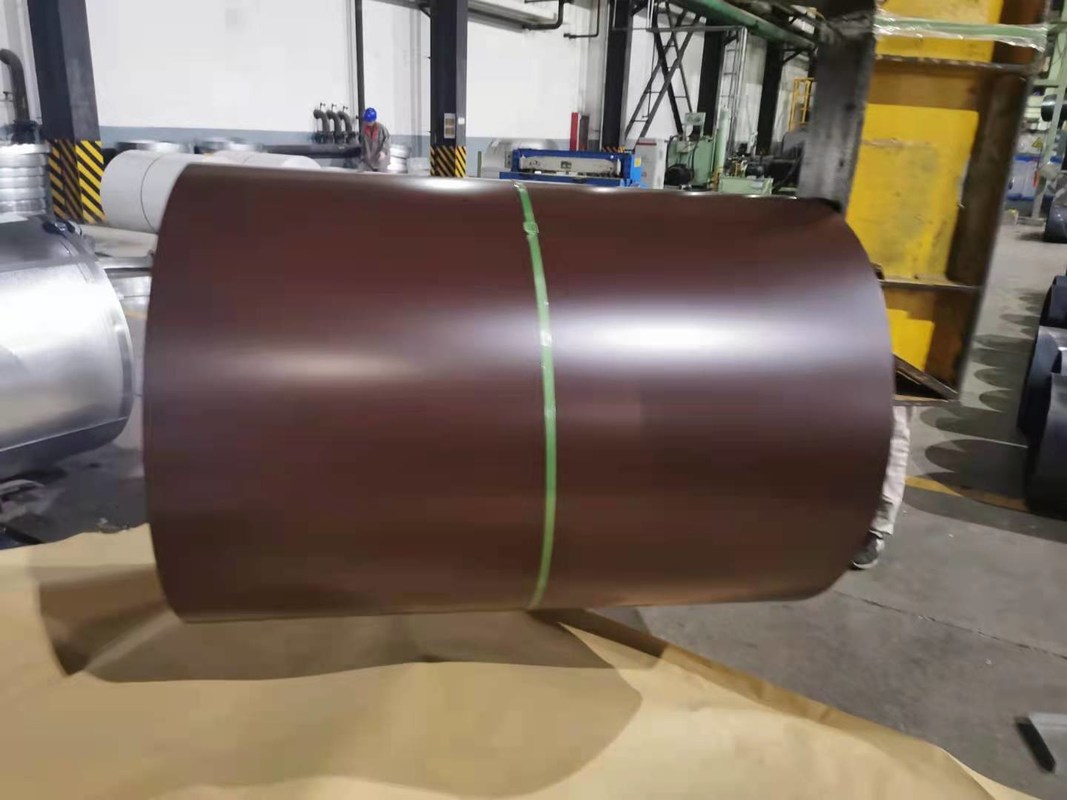

Color Coated Aluminum Coil / Sheet
Aluminum is an exceptionally eco-friendly metal, as it can be recycled infinitely without losing its properties. Yieh Corp. specializes in producing high-quality aluminum in various shapes, sizes, and grades, ensuring that we meet all your specific needs.
Versatility and Benefits:
Color Coated Aluminum Coils and Sheets are available in an extensive range of colors, textures, and finishes. These materials are lightweight, aesthetically pleasing, and excellent heat conductors, making them ideal for numerous applications. Due to their versatility and cost-effectiveness, Color Coated Aluminum Coils and Sheets are the preferred choice for many industrial projects.
Introduction:
The surface of the aluminum sheet is coated using advanced Korean technology and high-precision four-color printing units. Common coatings include fluorocarbon (PVDF) and polyester (PE), which provide vibrant, realistic colors, stable performance, and high corrosion resistance. With special treatments, these coatings can offer a surface quality guarantee of up to 30 years. Given that aluminum is the lightest metal by unit volume, color coated aluminum sheets have become the most popular material for new building decorations.
Coating Types for Wooden Printed Galvalume Steel Coils
Depending on the environmental conditions and intended use, different resin coatings can be selected:
Aluminum is infinitely recyclable, making it an environmentally friendly metal. Yieh Corp. offers a wide range of high-quality aluminum products in various shapes, sizes, and grades, ensuring you find exactly what you need from us.
Color coated aluminum coils and sheets are available in a diverse range of colors, textures, and finishes, suitable for a wide array of applications. Lightweight, aesthetically pleasing, and efficient at conducting heat, color coated aluminum coils and sheets represent the most economical option for a variety of industrial projects.
Our Advantages:
Our factory's aluminum color coating production line uses Germany's Siemens complete line control system, and the core painting process uses the world's most advanced German roll coating technology and twice-coated, twice-hot air-curing coating technology to accurately control coating thickness and curing quality.
The color aluminum adopts neutral treatment agent, roller coating treatment and hot air rapid drying process in the chemical treatment process, which is different from the ordinary dip coating chemical treatment method, which effectively eliminates environmental damage.
Moreover, the surface treatment is carried out with advanced chromium-free treatment liquid to meet strict environmental protection requirements at home and abroad.
During the curing process of the color coated aluminum plate surface coating'. the volatile components can be recycled and utilized for the second time, and equipped with an advanced VOC defluorination system to improve the utilization rate of heat energy while achieving zero emissions, and absolutely elimina te environmental pollution.
Detailed Parameters:
| PRODUCT CATEGORY | Polyester PE Color coated Aluminum | Fluorocarbon / PVDF Color coated Aluminum |
| Aluminum thickness | 0.30-2.0mm | 0.30-2.0mm |
| Paint coating | Top ≥15μm | Top ≥25μm |
| thickness | Back≥5μm | Back≥5μm |
| MEK | ≥100 | ≥200 |
| T bending | ≤2T | ≤2T |
| Impact | 50kg.cm | 50kg.cm |
| Adhesion | 0 Grade | 0 Grade |
| Pencil Hardness | ≥2H | ≥2H |
| Boiling water proof | No change within 2 hours | No change within 2 hours |
| Typical Alloy | 1100, 1050, 1060, 3003, 3004, 3005, 3104, 3105 | |
| Typical Status | H14, H16, H18, H24, H26 | |
| Products | Colored aluminum coil |
| Size | CUSTOMIZATION. Special sizes can be produced here. |
| Standard | GB/T 3880--2012 or ASTM B209 |
| Alloy | 1050 1060 1100 3003 3004 3105 5052 |
| Temper | O H12 H14 H16 H18 H19 H22 H24 H26 H28 H112 H32 |
| Thickness range | 0.1-3.0mm |
| Paint | PE, PVDF, Epoxy |
| Paint thickness | As customers' request. Usually, one layer is 15-18mic, and two layers are 25-28mic. |
| Color | As customers' request. Any color will be okay. Solid color, metallic color etc. |
| Film | Film coat to protect paint. |
| MOQ | Depends on size. Usually 3-6tons. |
| Production process | DC or CC |
| Certificate of Origin | CO, Form E, Form A, etc. |
Paint Suppliers & Partners:
We only choose the top-level paint suppliers for our pre-painted steel coils and sheets,
AkzoNobel, Sherwin-Williams Valspar, Beckers, PPG Industries, Nippon, KCC are our solid paint suppliers.
Their best paint materials decide our steel coils quality.
Patterns / Colorful Customzied Advantages:
Package & Delivery Shipment :
Delivery time: 30 days deliver to loading port
Shipment Methods: Container, Breakbulk, Railway, Trucks
Projects:
